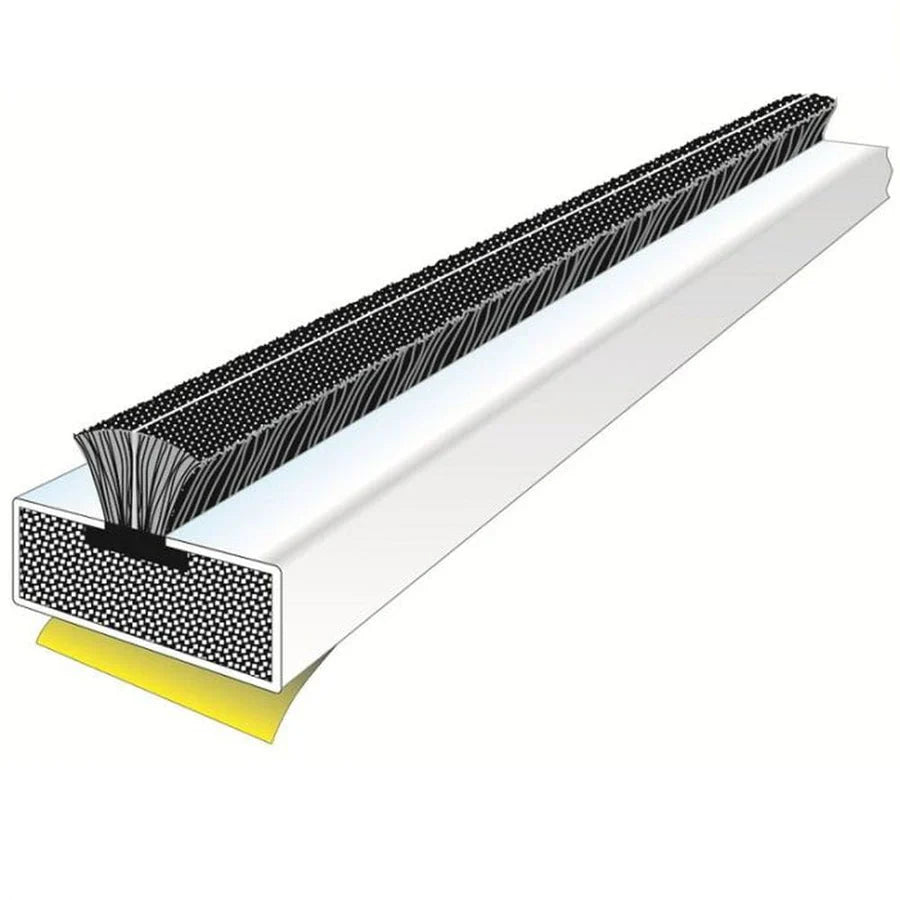

Carlisle Brass - 2.1m Fire Door and Smoke Seals - White

Intumescent and Smoke Seals

(20 products)

Premium Intumescent and Smoke Seals – FD30 & FD60

Ensure full compliance with UK fire door regulations using our intumescent and smoke seals. Designed to block flames and cold smoke, these high-performance strips are available in 10mm and 15mm for FD30, and 20mm for FD60 fire doors. Choose from black, brown, or white finishes, available for delivery to London, Manchester, Birmingham, and across the UK.

View as

Understanding Fire Door Seal Technology

Intumescent and Smoke Seals – Design, Function & Compliance

Intumescent and smoke seals are a critical component of any fire door assembly. They provide both fire resistance and smoke control in accordance with UK fire safety standards.

Intumescent core: Expands rapidly when exposed to extreme heat, closing the gap between the door and the frame.

Smoke control brush or fin: Acts immediately to block cold smoke, which is often the first hazard in a fire.

Options include:

  • FD30 fire door seals – 10mm or 15mm widths
  • FD60 fire door seals – 20mm width

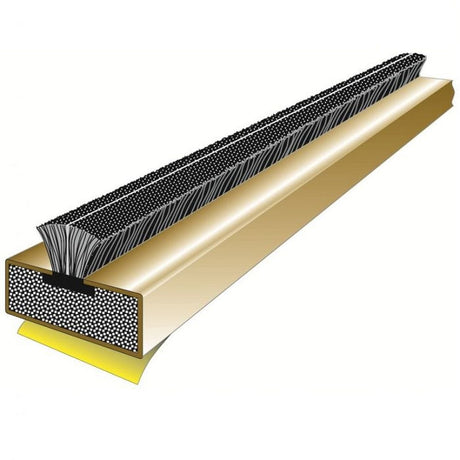

  • Finishes in black, brown, and white to match door furniture and accessories

Fitting guidance: Install into a routed groove on the vertical and top edges of the door or frame (not the bottom) to create a continuous protective barrier.

Compliance & suitability: Tested to BS 476 and BS EN 1634, suitable for commercial, residential, and public buildings across the UK.

Fire & Smoke Seals • FD30 & FD60 • Tested to UK Standards • 10mm, 15mm, 20mm • Black, Brown, White

Choosing the Right Seal

Fire-Only vs Fire & Smoke Seals

Fire-Only Seals: Designed to expand in a fire to block flames and hot gases, but they do not stop smoke before heat activation.

Fire & Smoke Seals: Include a brush or rubber fin for immediate smoke control, offering greater protection and often required under UK building regulations.

Pro Tip: Most UK installations specify fire & smoke seals for life safety. Fire-only seals are generally used in specialist applications where ventilation is required.

If you can’t find the right size or finish, our team can help — please contact us for expert guidance.

Frequently Asked Questions

Where are intumescent and smoke seals fitted?

They’re installed in a routed groove on the vertical and top edges of the fire door or frame, never the bottom.

What size should I choose for my fire door?

FD30 doors usually take 10mm or 15mm strips, while FD60 doors require 20mm.

What’s the difference between fire-only and fire & smoke seals?

Fire-only seals expand in heat to block flames but don’t stop early smoke; fire & smoke seals add a brush or fin to block smoke immediately.

Nationwide Delivery

Trusted Supplier of Fire Door Seals Across the UK

With over 40 years in architectural ironmongery, we supply certifire-approved fire door seals across the UK, including London, Manchester, Birmingham, Leeds, Bristol, Glasgow, and Edinburgh. Our products are tested to BS 476 and BS EN 1634, ensuring they meet the highest standards for fire and smoke protection.

We also offer related solutions in Fire & Acoustic Seals, Door Closers, and Premium Accessories.
