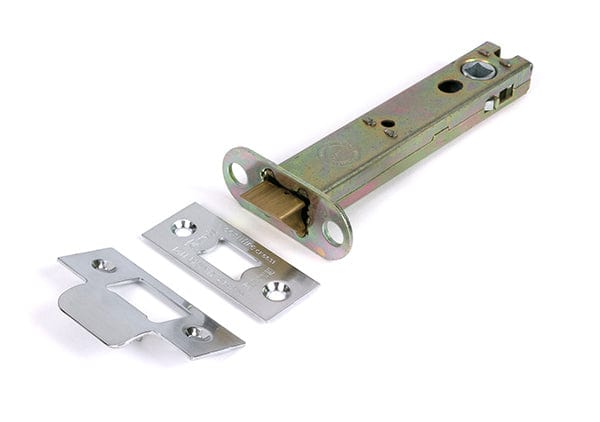

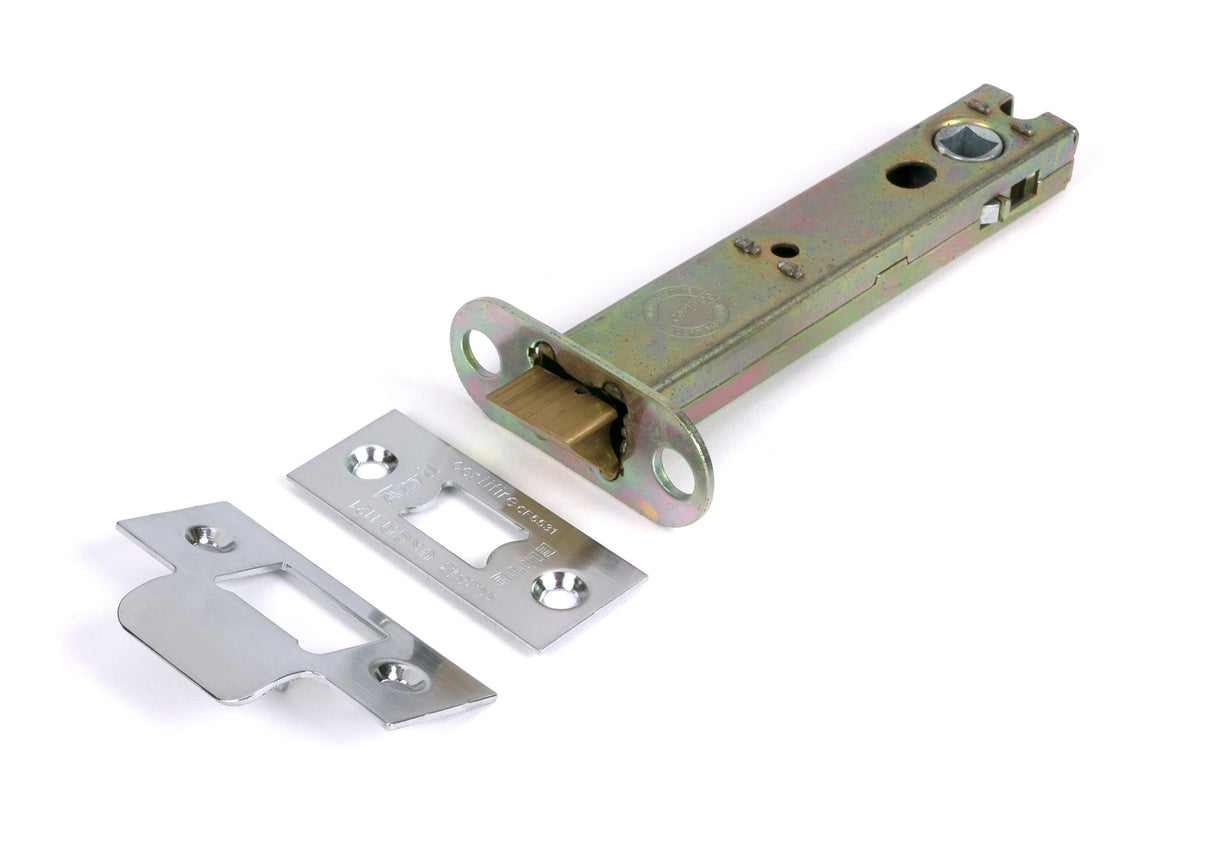

From The Anvil Satin Chrome 5" Heavy Duty Latch

Satin Chrome 5" Heavy Duty Latch

• Sold As: Sold Individually
• SKU: Anvil-51767
• Manufacturer: From The Anvil
• Finish: Satin Chrome
• Product Type: Latches

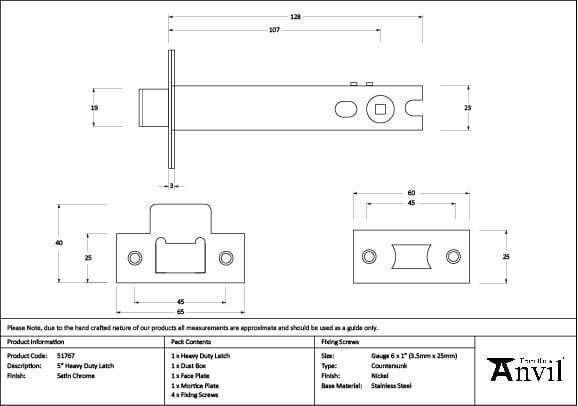

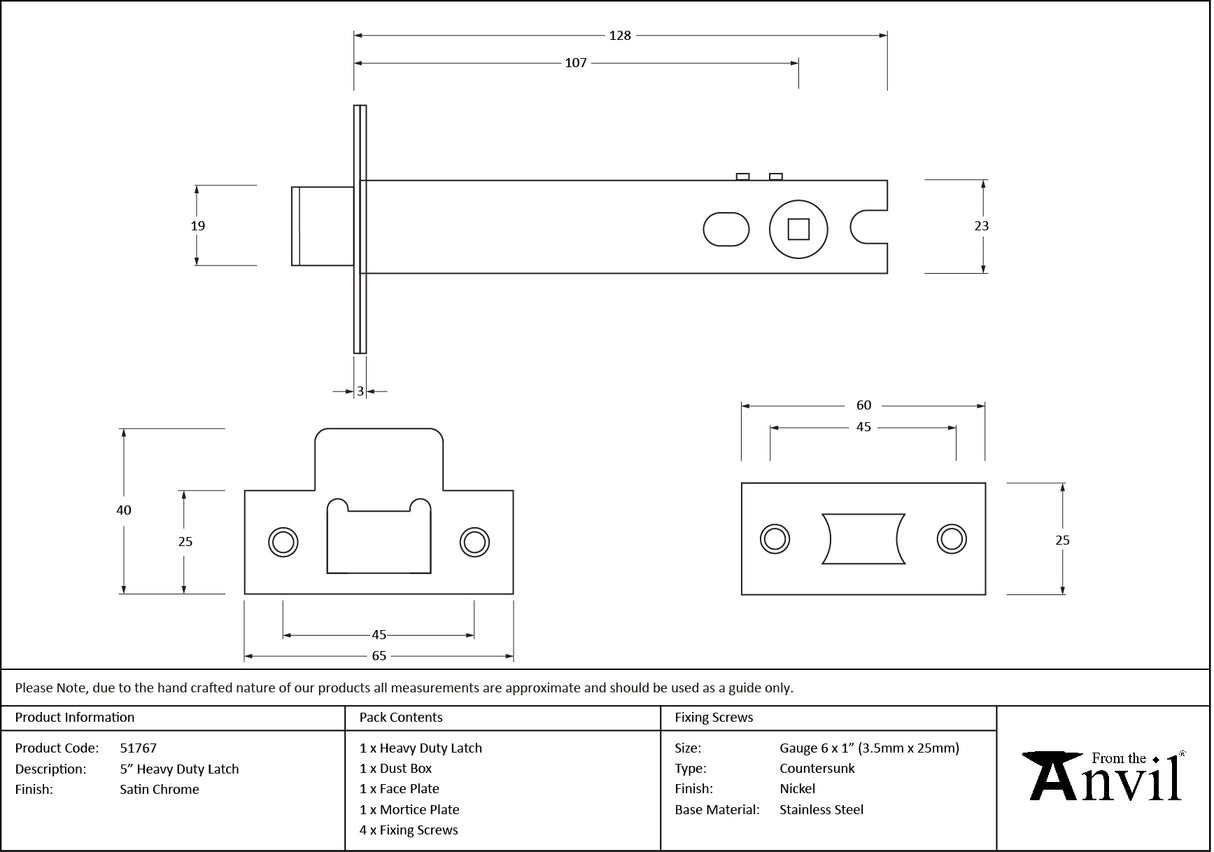

• Tube Size: 128mm (L) x 23mm (H) x 15mm (T)
• Backset: 107mm
• Forend Size: 60mm (L) x 25mm (w)
• Strike plate: 65mm (L) x 40mm (W)

The From The Anvil 5" Heavy Duty Latch in Satin Chrome is a heavy duty mortice latch for internal doors, worked by sprung lever handles or knob sets. It has a 107mm backset. It is CERTIFIRE approved (certificate CF5531) and fire tested to FD-20/30/60. From The Anvil recommends a 2.5" or 3" latch with lever handles, and a 3", 4" or 5" latch with knob sets. It is sold individually.

Product Features

• We recommend using a 2.5" or 3" latch with our lever handles, and a 3", 4", or 5" latch with our knob sets.
• Performance tested against BS EN12209:2003.
• CERTIFIRE Approved (Certificate CF5531) and fire tested to FD-20/30/60.
• This heavy duty latch is both UKCA marked (0086 CPR 805689) and CE marked (Certificate 2797 CPR 805686).
• For rebated doors, use the matching rebate kit (product code 51776).

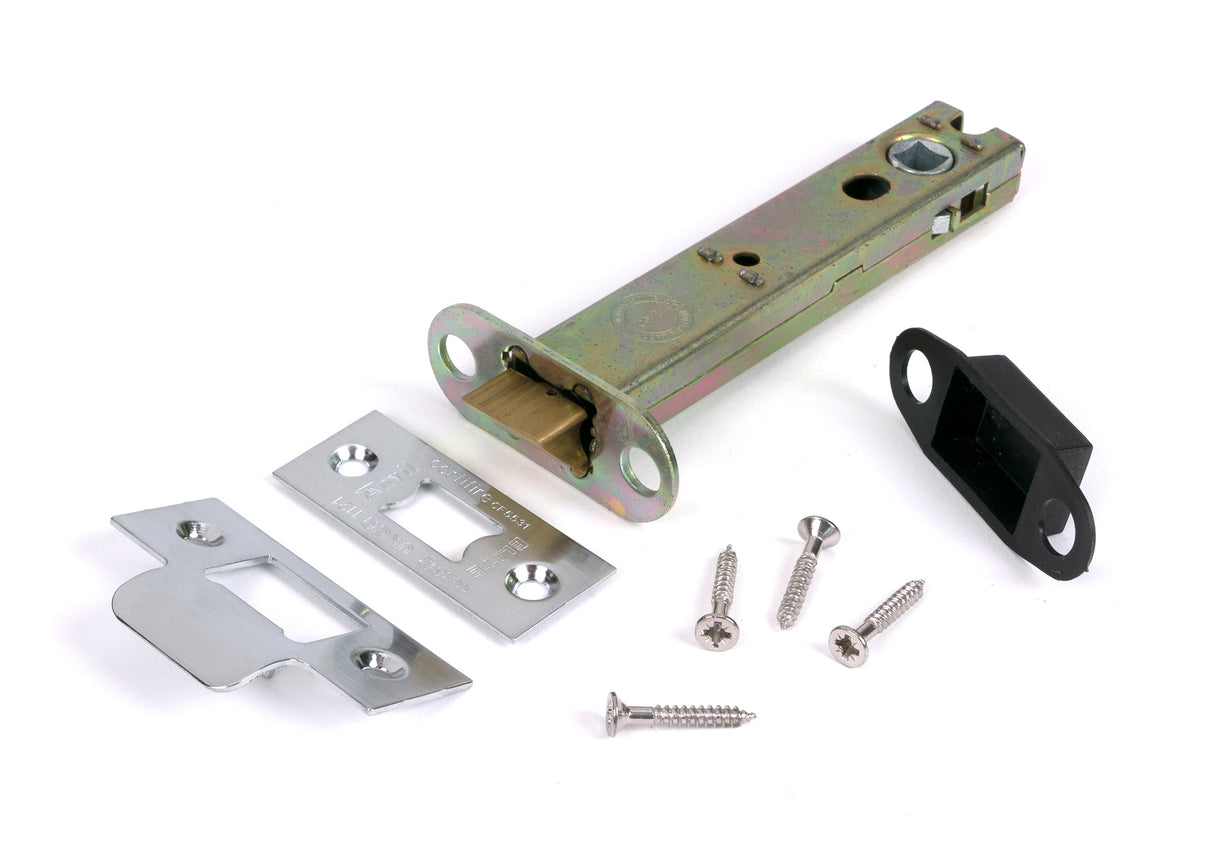

• Supplied with matching stainless steel wood screws.

About the Design

A heavy duty tubular mortice latch with an extra strong spring for use with any of our knob sets or unsprung lever handles.

Satin Chrome Finish

The faceplates are manufactured from mild steel with a high quality plated finish designed to perfectly match our Satin Chrome products.

Other Finishes

This 5" Heavy Duty Latch is also available in Aged Brass, Aged Bronze, Black, PVD Brass, Pewter Patina, Polished Brass, Polished Bronze, Polished Chrome, Polished Nickel, Polished Stainless Steel, Satin Brass and Satin Stainless Steel. See every finish in From The Anvil tubular mortice latches.

Care & Maintenance

Regular oiling of all moving parts using our '3-in-1 Oil' (92337) is beneficial to the longevity of your products. This process is also highly recommended during initial installation. An oily cloth can also be used to wipe over the product from time to time to aid protection against exterior or environmental elements.

Matching Hardware

Match this latch with sprung door handles on rose or latch door handles on backplate, and hang the door on ball bearing hinges. For a bathroom, add a tubular deadbolt.
