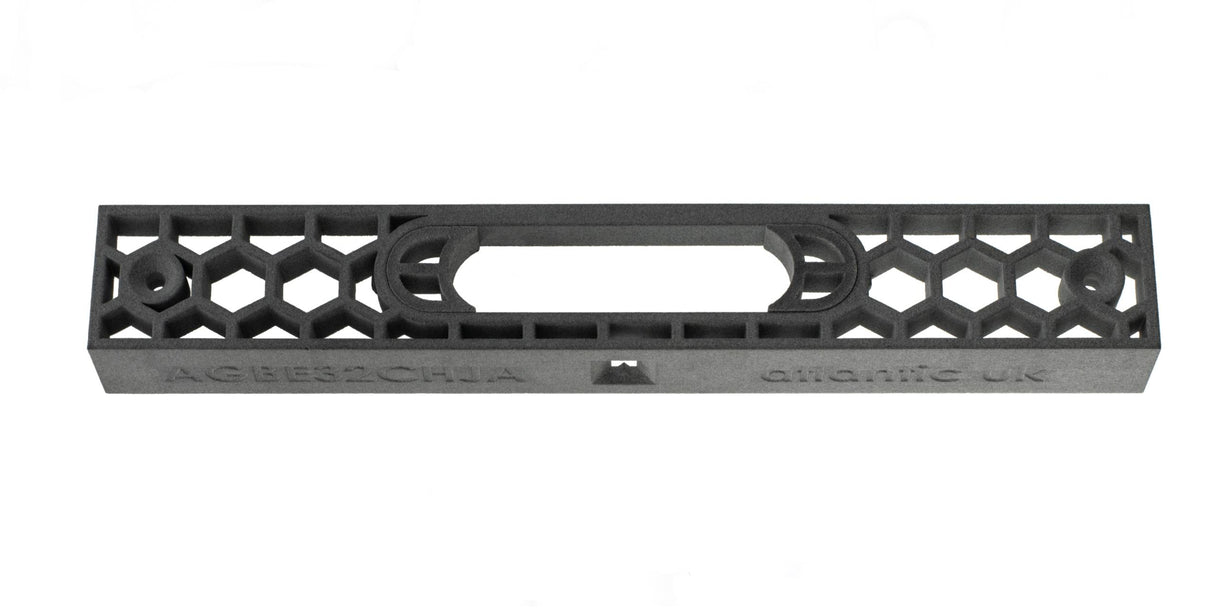

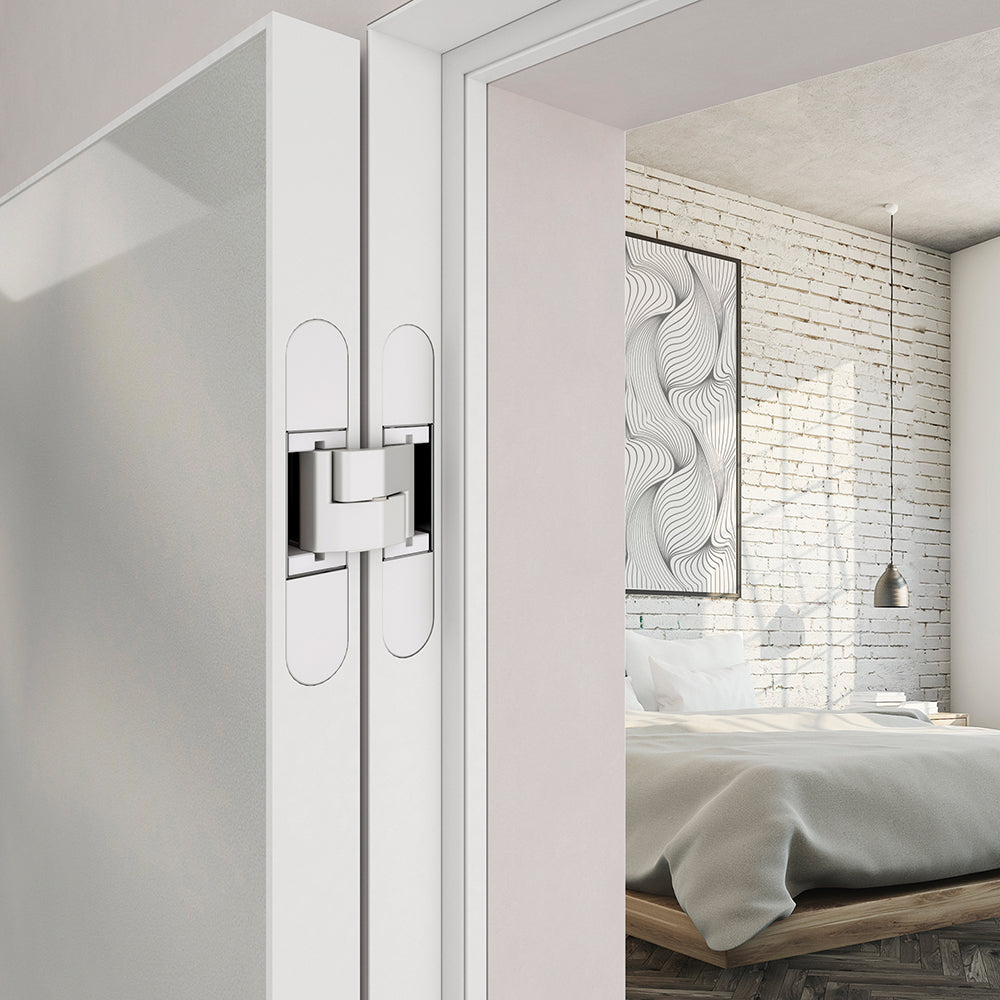

Atlantic UK AGB Single Jig for Eclipse 3.2 Concealed Hinges - 3D Printed Item

This jig is suitable for the AGB Eclipse 3.2 range, including the 3.2 HD Concealed Hinge and 3.2 HD SELF Concealed Hinge, providing that the correct depth is drilled/routed out for. We recommend use of a top bearing guided router bit, E.g. Trend C121BX1/4TC, and drill out to full depth with a 22mm Forstner/ None self-feeding spade pit, and then cleanup with a chisel as needed. Manufactured using additive manufacturing with nylon PA12. If damaged by the router bit, it can be repaired using a two-part wood filler, while also ensuring no damage occurs to the router bit itself. Comes with the jig and 2 inserts. Atlantic UK recommends this is only used on new doors and door frames. Suitable for doors that are 35mm and upwards, and with frame rebates that are not more than 12mm deep.

Key Features

• Unit of sale: Each
• Material: Plastic
• Range: AGB
• Style: Eclipse 3.2 Concealed
• Finish: No Finish
• Guarantee: Suitable for doors that are 35mm and upward, and with frame rebates that are no more than 12mm deep.

Dimensions: Length - 260mm, Width - 39mm, Depth - 28mm

Installation: Download fitting instructions (PDF)

Data Sheets: Technical Data Sheet 1

Why Choose Atlantic UK AGB Single Jig for Eclipse 3.2 Concealed Hinges - 3D Printed Item?

Heavy duty, ball bearing hinges are often used for exterior doors weighing 80kg or more. Fire doors should be fitted with three fire door hinges or more; a CE or UKCA mark proves the hinge is tested and suitable for fire-rated doors. Hinges are made from two metal plates attached together with a removable pin. They secure the door to the frame and allow it to swing open and closed, and different applications require different types and materials.
