Frelan Hardware Double Pocket Door Kit

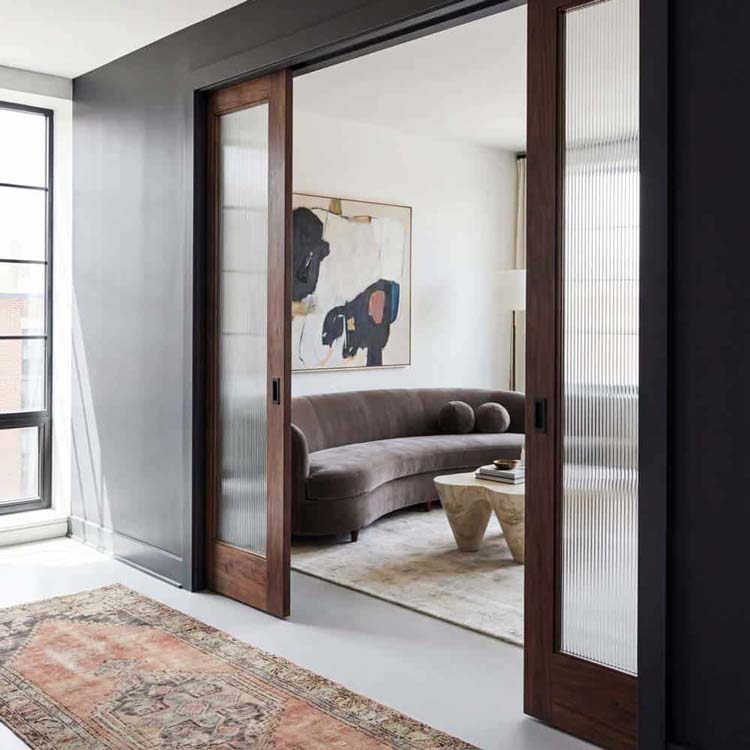

The Frelan Hardware Double Pocket Door Kit (JVPDKD) is a complete concealed sliding system for a pair of internal doors that meet in the middle of the opening. Both leaves glide into their own hidden pockets within the stud wall, so a wide opening can be closed off completely or thrown fully open without a single door swinging into the room. It is the go-to space-saving solution for through-lounges, large en-suites, dressing rooms and open-plan layouts where a broad, flexible opening is wanted without sacrificing floor space.

Supplied by Frelan Hardware, this double pocket door gear kit combines two single kits with the joining adaptor needed to run them as a matched pair. Each leaf benefits from the soft close and soft open mechanism fitted as standard, is rated for doors up to 100kg and is cycle tested to 100,000 operations for dependable everyday use in residential and light commercial projects.

What is in the box

• 2 x single pocket door kits (JVPDK)
• 1 x double door joining adaptor (JVPDA)
• Soft close and soft open mechanisms (fitted as standard)

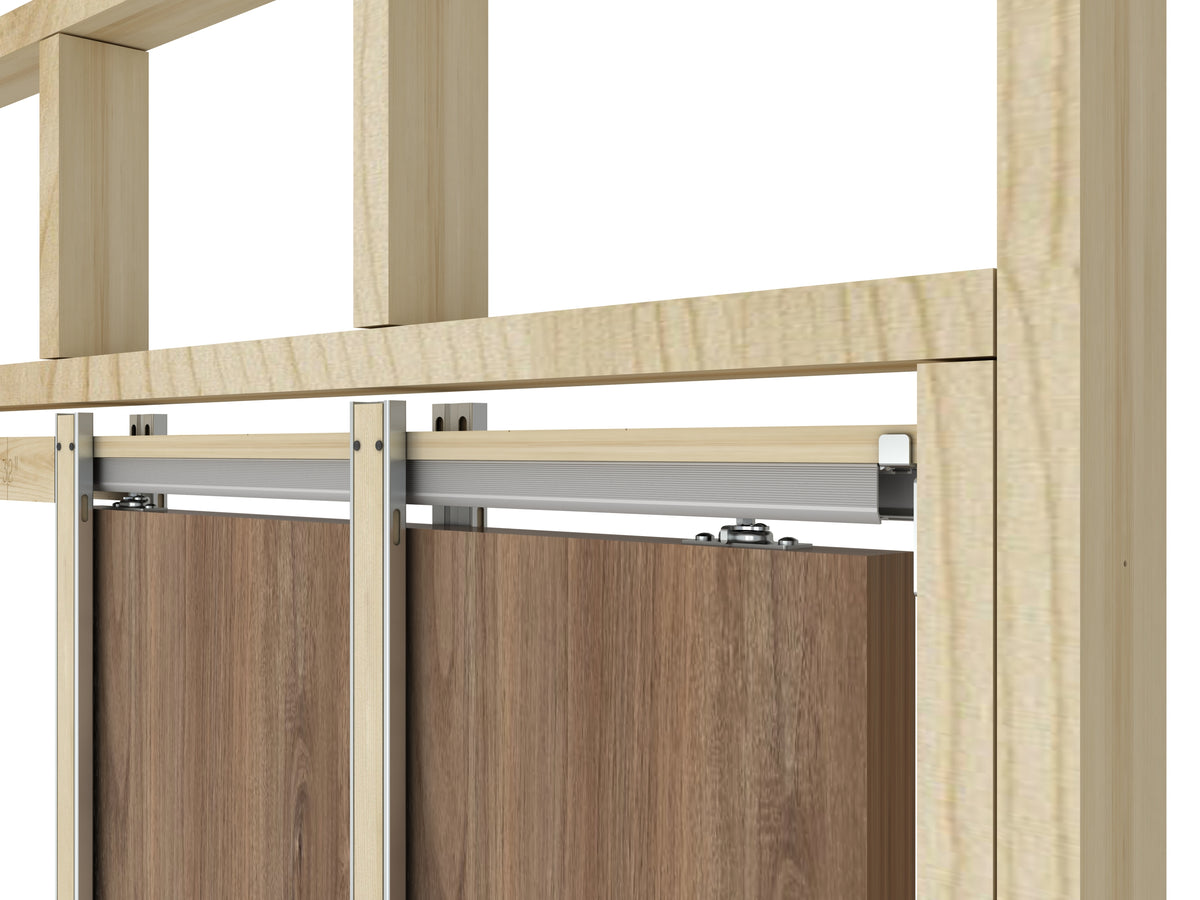

• Sliding tracks, hangers and fixings

Key features

• Adjustable on site to suit doors up to 2040mm (H) x 860mm (W) x 44mm (T) per leaf
• Soft close and soft open action as standard on both doors
• Rated to carry internal doors up to 100kg per leaf
• Cycle tested to 100,000 opening and closing operations
• Takes 30-45mm thick doors - 35mm doors with raised beading or mouldings are fine provided overall thickness stays within 45mm
• One track size covers all sizes and is clearly marked for cutting to common door widths
• Backed by a 5 year guarantee against manufacturing defects

Stud wall and installation guidance

Each pocket is built into standard 4 x 2 (89mm) stud work with 12.5mm plasterboard, giving a finished wall thickness of 114mm and a 57mm internal cavity to suit 30-45mm doors. For full step by step fitting guidance, download the double pocket door fitting instructions or view the complete Frelan pocket door brochure.

Specification

• Stud work: designed for 4 x 2 (89mm) stud and 12.5mm plasterboard
• Finished wall thickness: 114mm
• Internal cavity: 57mm - suits 30-45mm doors
• Maximum door size: 2040 x 860 x 44mm per leaf
• Maximum door weight: 100kg per leaf
• Cycle tested: 100,000 cycles
• Material: anodised aluminium frame with natural pine timber liners
• Use: internal - residential and commercial
• Guarantee: 5 years (manufacturing defects)

Please note: finishing jambs and brushes are not included - jambs are made up by the fitter on site. Not suitable for fire-rated door installations. Doors sold separately.
