Frelan Hardware Single Pocket Door Kit

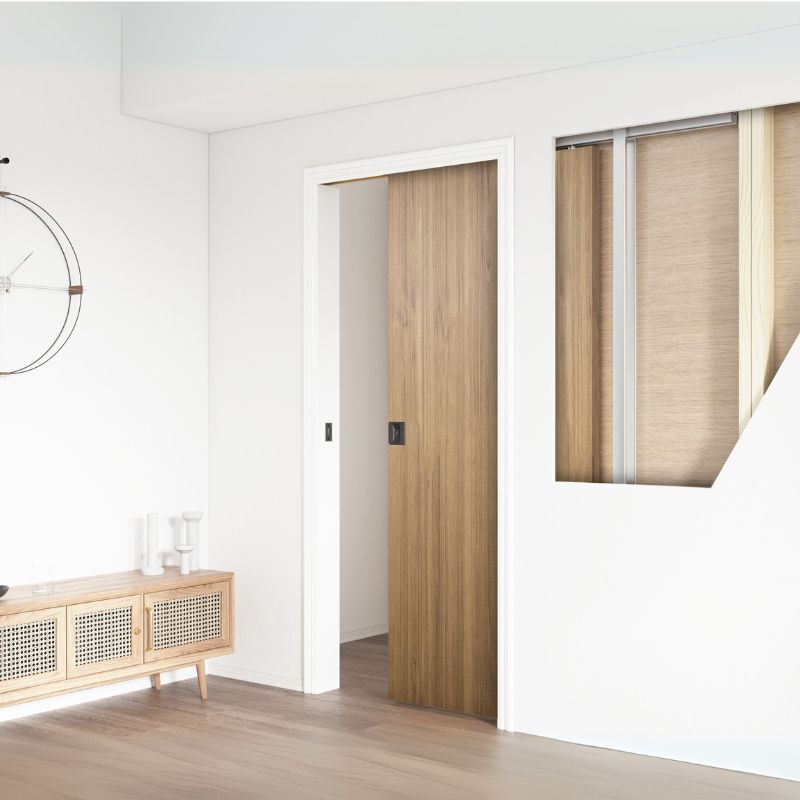

The Frelan Hardware Single Pocket Door Kit (JVPDK) is a complete concealed sliding door system that lets one internal door glide smoothly into a hollow pocket inside the stud wall. Where a traditional hinged door needs a clear arc of floor to swing into, a pocket door recovers that space entirely, making it an ideal space-saving solution for bathrooms, en-suites, utility rooms, home offices and tight hallways where every inch of usable floor area counts.

Supplied by Frelan Hardware, this single pocket door gear kit arrives with the soft close and soft open mechanism fitted as standard, so the door draws itself gently to a stop at each end of the run with no bangs or slams. It is adjustable on site, rated for doors up to 100kg and cycle tested to 100,000 openings for long-term reliability in both residential and light commercial settings.

What is in the box

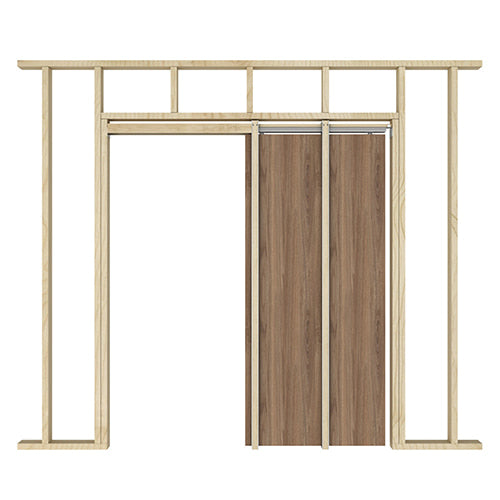

• 1 x pocket door cavity frame system
• Soft close and soft open mechanism (fitted as standard)
• Sliding track, hangers and fixings

Key features

• Adjustable on site to suit doors up to 2040mm (H) x 860mm (W) x 44mm (T)
• Soft close and soft open action as standard for a controlled, quiet glide
• Rated to carry internal doors up to 100kg
• Cycle tested to 100,000 opening and closing operations
• Takes 30-45mm thick doors - 35mm doors with raised beading or mouldings are fine provided overall thickness stays within 45mm
• One track size covers all sizes and is clearly marked to show where the fitter cuts for common door widths
• Backed by a 5 year guarantee against manufacturing defects

Stud wall and installation guidance

This pocket door frame is designed for standard 4 x 2 (89mm) stud work with 12.5mm plasterboard, giving a finished wall thickness of 114mm and an internal cavity of 57mm to suit 30-45mm doors. For full step by step fitting guidance, download the single pocket door fitting instructions or view the complete Frelan pocket door brochure.

Specification

• Stud work: designed for 4 x 2 (89mm) stud and 12.5mm plasterboard
• Finished wall thickness: 114mm
• Internal cavity: 57mm - suits 30-45mm doors
• Maximum door size: 2040 x 860 x 44mm
• Maximum door weight: 100kg
• Cycle tested: 100,000 cycles
• Material: anodised aluminium frame with natural pine timber liners
• Use: internal - residential and commercial
• Guarantee: 5 years (manufacturing defects)

Please note: finishing jambs and brushes are not included - jambs are made up by the fitter on site. Not suitable for fire-rated door installations. Door sold separately. Building a two-door opening that meets in the middle? You will need two of these kits plus the double door adaptor, or choose the ready-packaged double kit instead.
