Buying Guide

How to Choose a Tubular Mortice Latch

Choosing a door latch comes down to the handles, the backset and whether the door is a fire door.

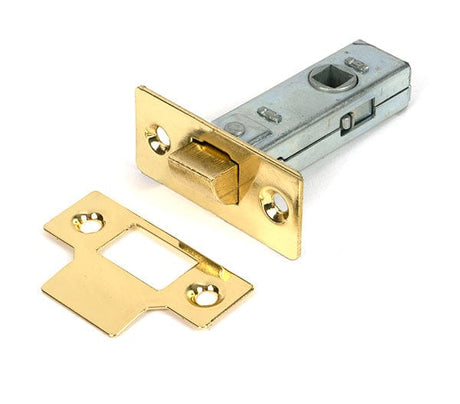

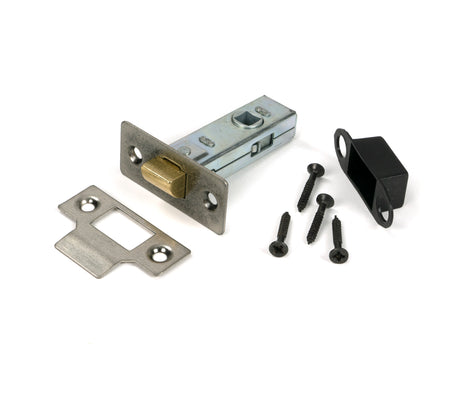

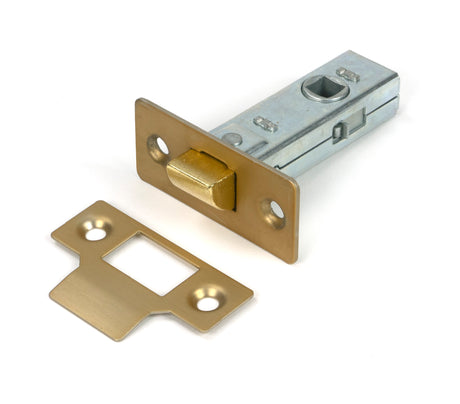

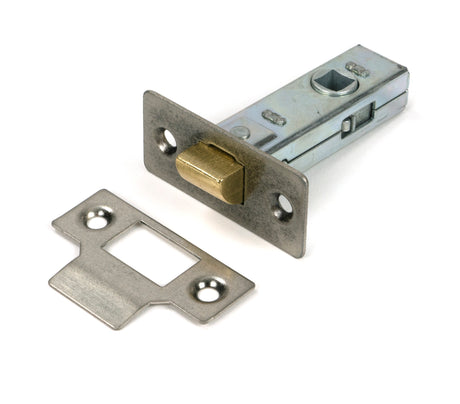

1. The handles: the standard tubular latch is for From The Anvil sprung lever handles. For mortice knobs and unsprung levers, choose the heavy duty latch, which has an extra strong spring so heavier handles always return to position.

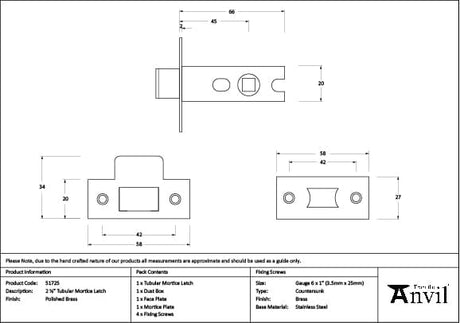

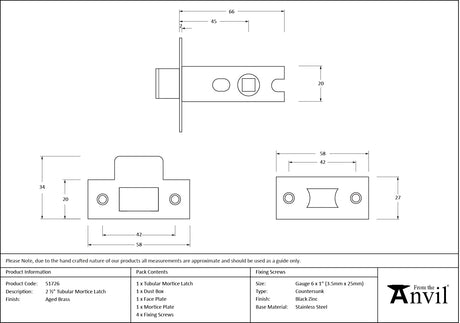

2. The size: From The Anvil recommends a 2 1/2" or 3" latch with lever handles, and a 3", 4" or 5" latch with knob sets. If you are replacing a latch, measure the backset from the door edge to the centre of the spindle: about 45mm for a 64mm latch, 57mm for a 76mm latch, and 82mm or 107mm for the 4" and 5" latches.

3. Fire doors: most heavy duty latches are CERTIFIRE approved and fire tested to FD-20/30/60. The standard tubular latches are not fire rated.

4. Special doors: rebated double doors need a matching rebate kit. For a horizontal case that keeps the knob well clear of the frame, see the horizontal latches.

5. The finish: match the faceplate to your handles, from brass and bronze to black, chrome and stainless steel.

Finishing Touches

Latches to Match Your Door Handles

The rest of the door: add latch door handles on backplate or lever handles on rose, hang the door on ball bearing hinges in the same finish, and add a tubular deadbolt and bathroom thumbturn where you need privacy.

See them before you buy: Trade Door Handles is part of T.H. Wiggans Ironmongery, an independent architectural ironmonger trading since 1976. We have supplied From The Anvil for decades, and both our T.H. Wiggans showroom in Kendal and our Trade Door Handles showroom in Carlisle have From The Anvil displays. We can help you check backsets and which latch suits your handles. Visit our showrooms or contact our team for help choosing.

From The Anvil Tubular Latch FAQs

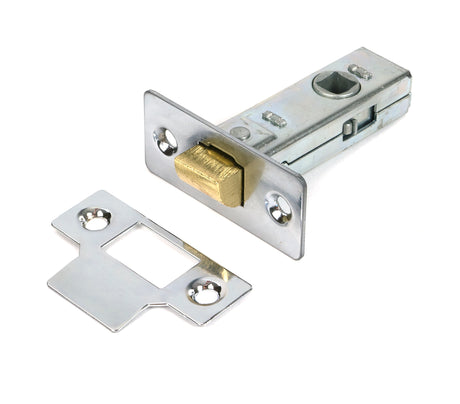

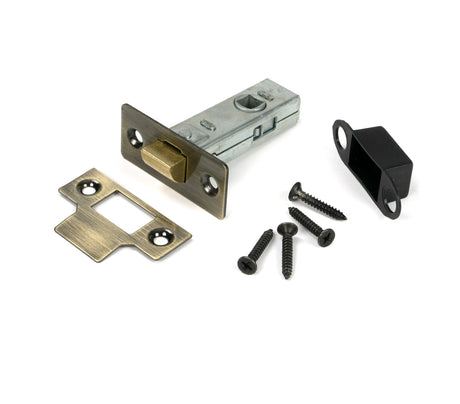

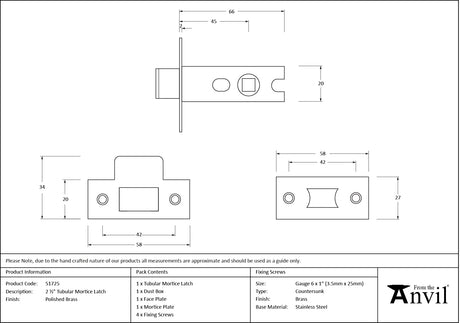

Which size latch do I need?

From The Anvil recommends a 2 1/2" or 3" latch with lever handles, and a 3", 4" or 5" latch with knob sets. If you are replacing a latch, measure the backset (from the door edge to the centre of the spindle hole) and match it: about 45mm for 2 1/2" (64mm), 57mm for 3" (76mm), and 82mm or 107mm for the 4" and 5" latches.

Standard or heavy duty latch?

The standard tubular latch is for From The Anvil sprung lever handles. The heavy duty latch has an extra strong spring for knob sets and unsprung lever handles, so heavier handles always return to position.

Which latches are suitable for fire doors?

The heavy duty latches. Most are CERTIFIRE approved (certificate CF5531) and fire tested to FD-20/30/60, and From The Anvil describes the Black, PVD Brass and Satin Stainless Steel heavy duty latches as suitable for 30/60 minute fire doors. The standard tubular latches are not fire rated.

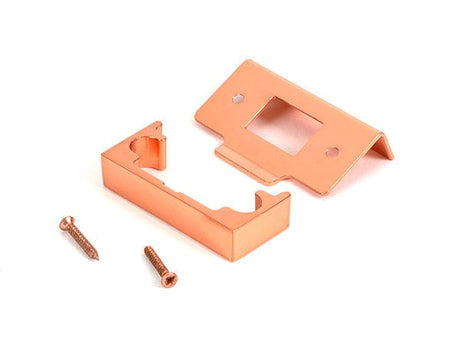

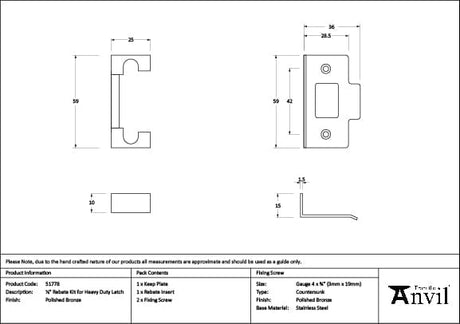

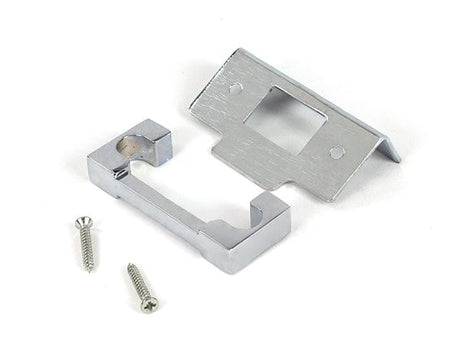

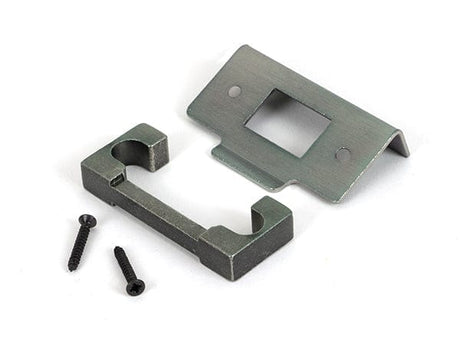

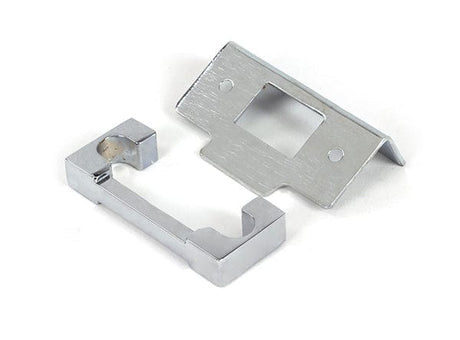

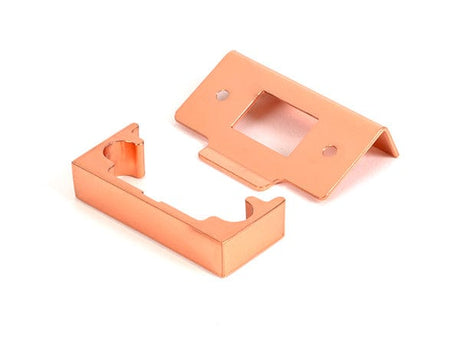

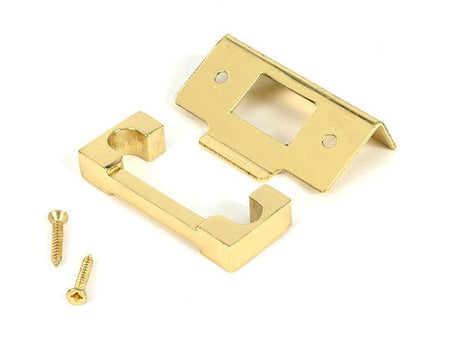

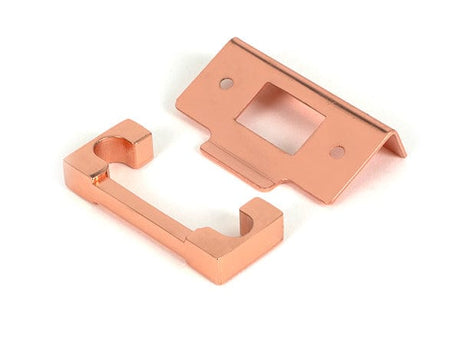

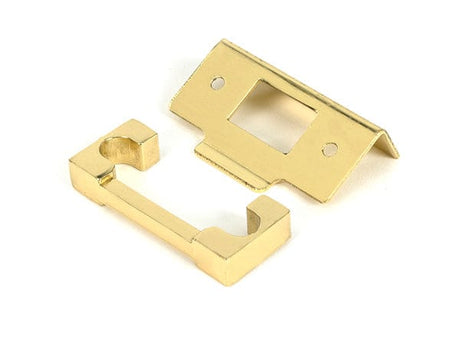

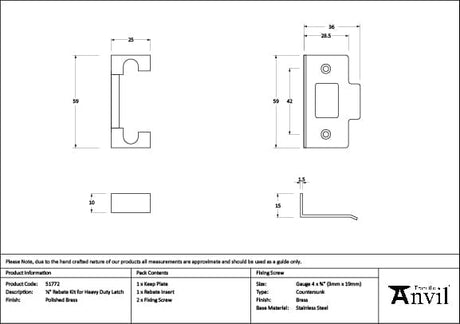

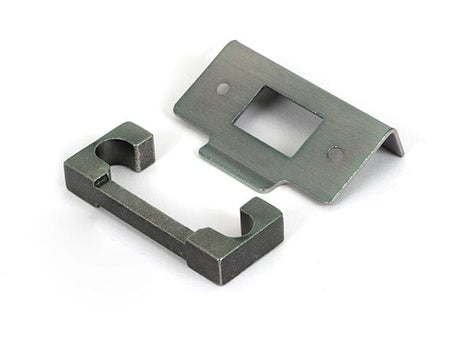

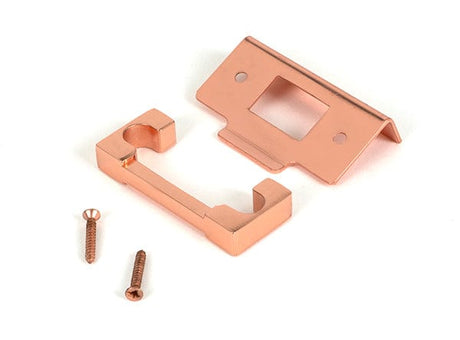

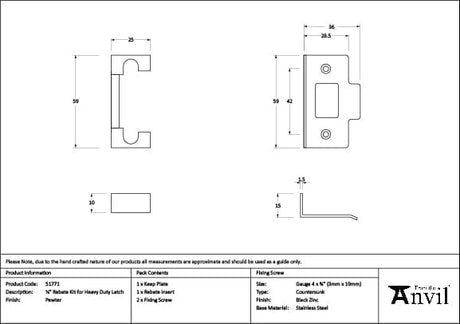

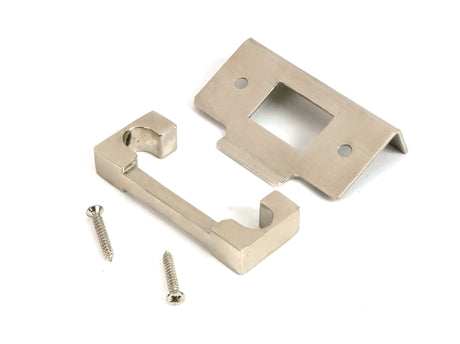

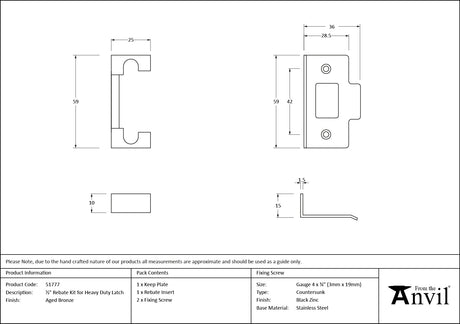

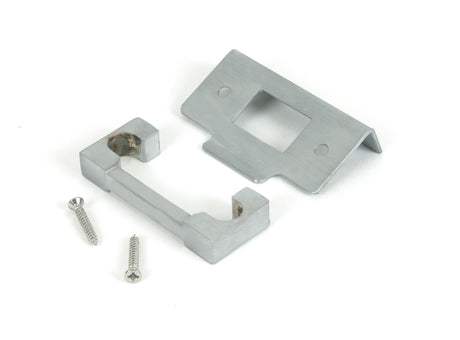

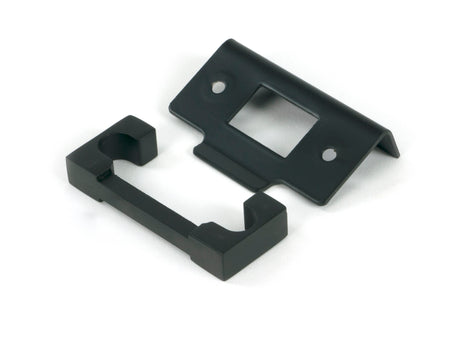

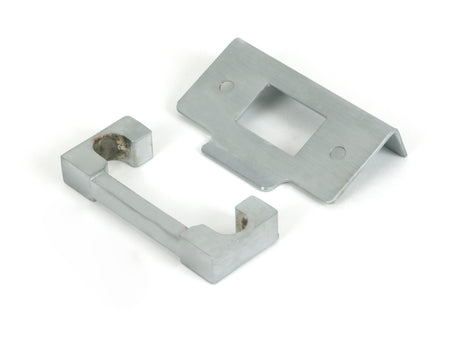

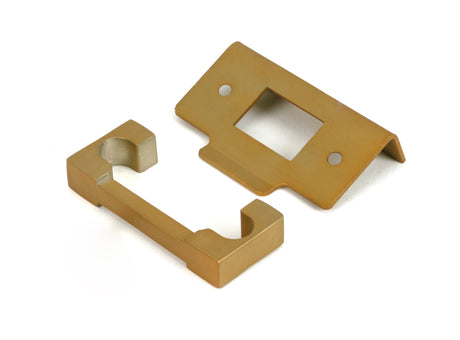

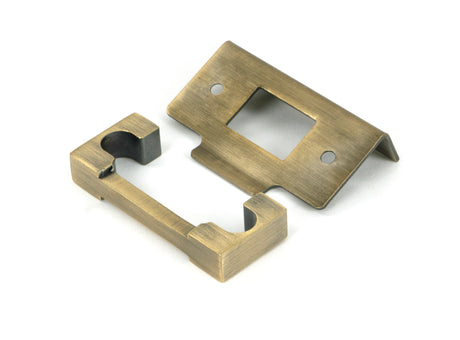

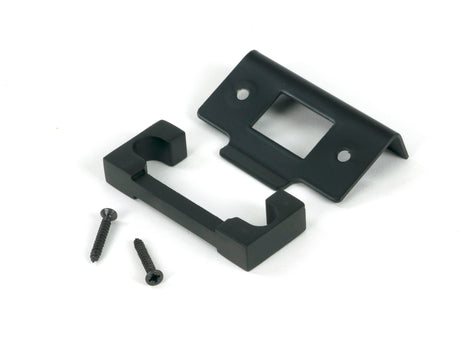

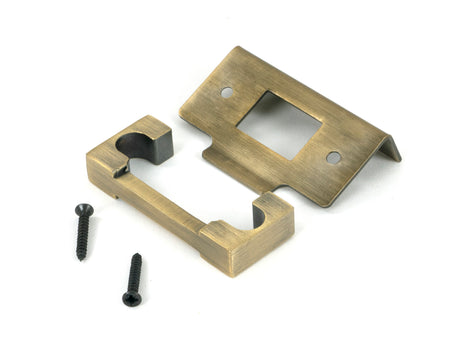

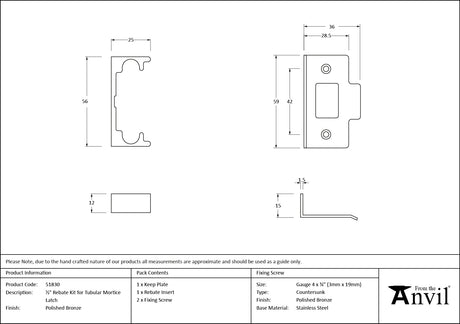

What do I need for rebated double doors?

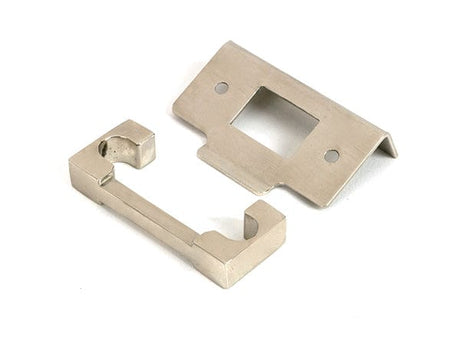

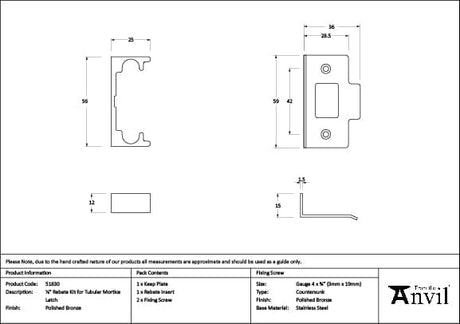

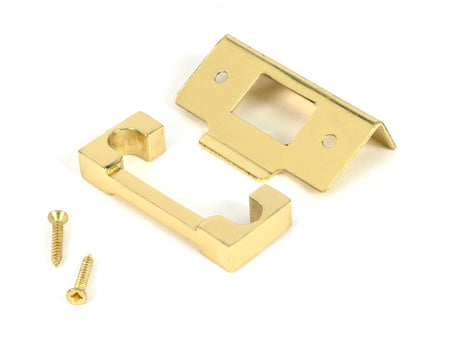

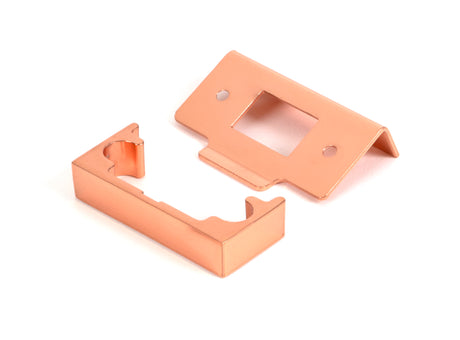

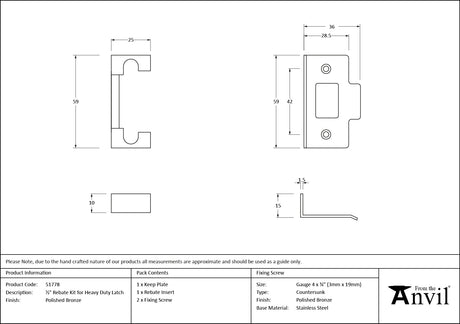

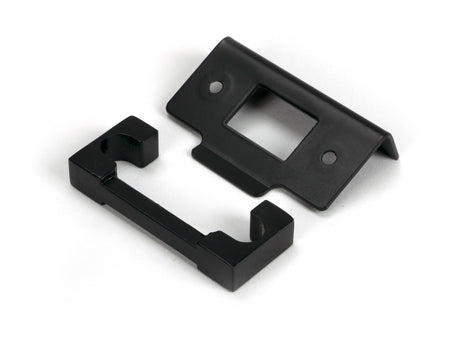

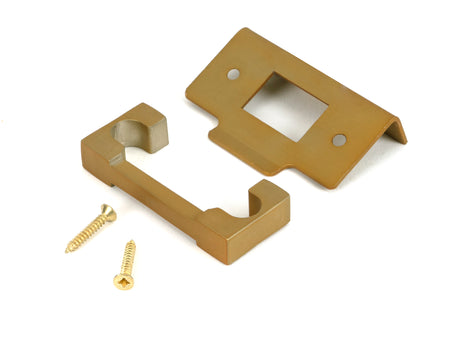

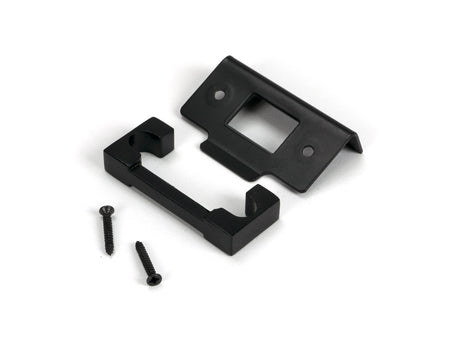

Add a rebate kit in the same finish. There is one for the standard tubular latch and one for the heavy duty latch, and From The Anvil says they suit doors 40mm to 50mm thick.

How quickly can I get From The Anvil latches?

We order From The Anvil items in for you, usually with a 3 to 4 day delivery. If you need them urgently, we can ship direct to site next day for an additional charge. Contact us before you order if you have a deadline.
